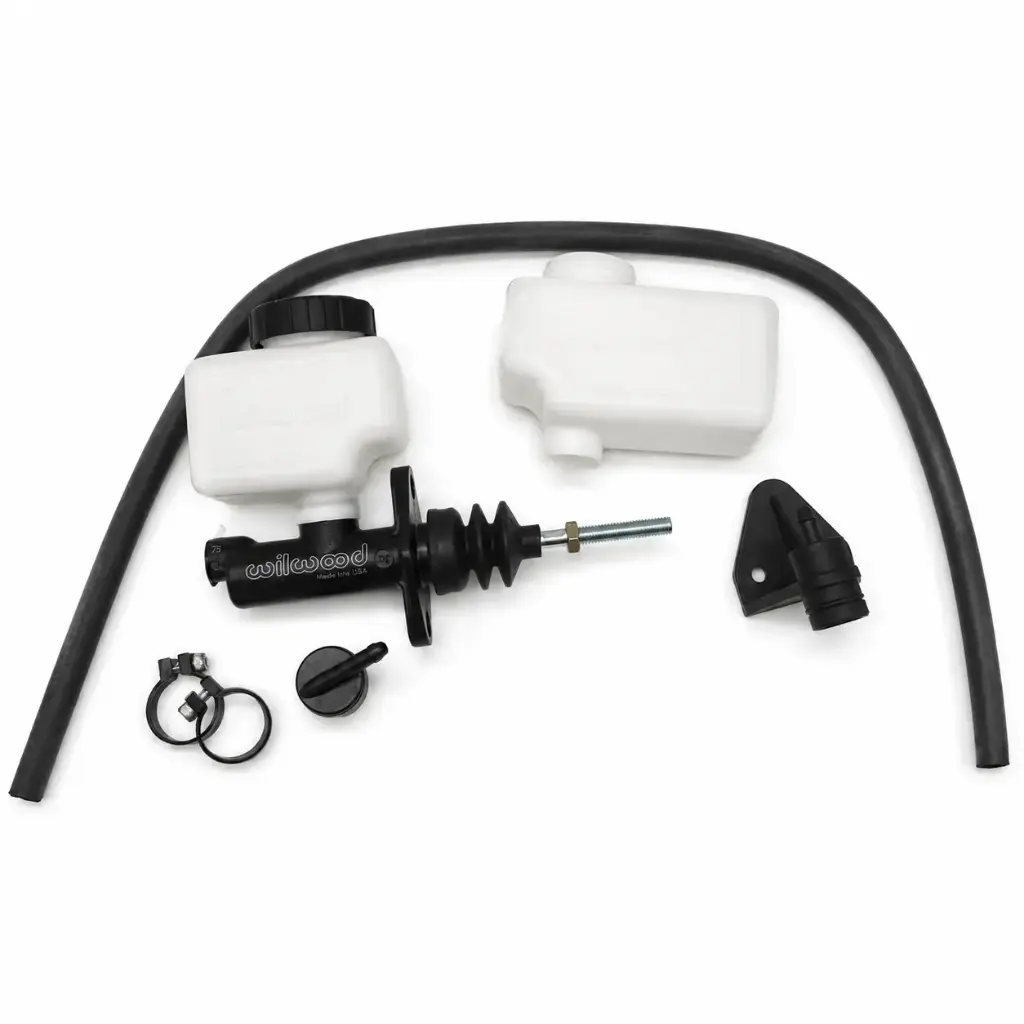

WILWOOD 3/4 COMPACT MASTER CYLINDER KIT (T/O)

Wilwood Compact Remote Master Cylinder Kit 3/4" Bore Take-Off

This Wilwood compact master cylinder kit provides full-size hydraulic capacity in a short-body design suited to restricted installation areas. The 3/4" bore and 1.12" stroke make it suitable for compatible motorsport brake or clutch systems.

Its flange-mount aluminium cylinder features a single 1/8" NPT outlet positioned near the top of the bore to help minimise trapped air. The reservoir can be mounted directly to the cylinder or remotely using the supplied hose and fittings, providing flexibility when packaging the system within a race car.

Ideal for pedal box installations, competition vehicles and custom motorsport builds where space, accessibility and dependable hydraulic operation are important.

Specifications:

• Manufacturer: Wilwood
• Product Type: Compact Master Cylinder Kit
• Bore Diameter: 3/4"
• Stroke: 1.12"
• Cylinder Length: 3.37"
• Outlet Configuration: Single
• Outlet Port: 1/8" NPT
• Mounting Style: Flange Mount
• Reservoir Configuration: Direct or Remote
• Reservoir Capacities: 7 oz or 10 oz
• Cylinder Material: Aluminium
• Finish: Black E-Coat
• Variant: Take-Off
• SKU: WW260-10372-TO
