WILWOOD MASTER CYLINDER 1-1/8"

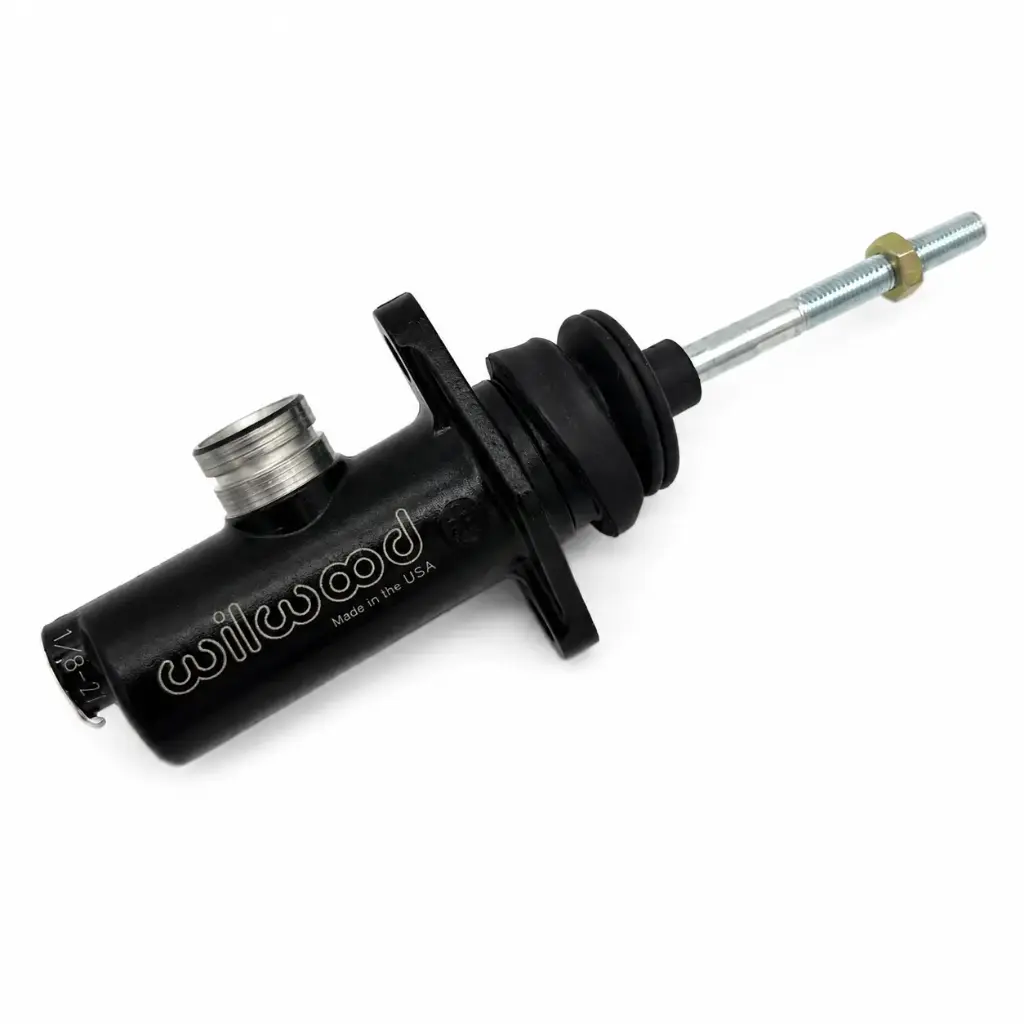

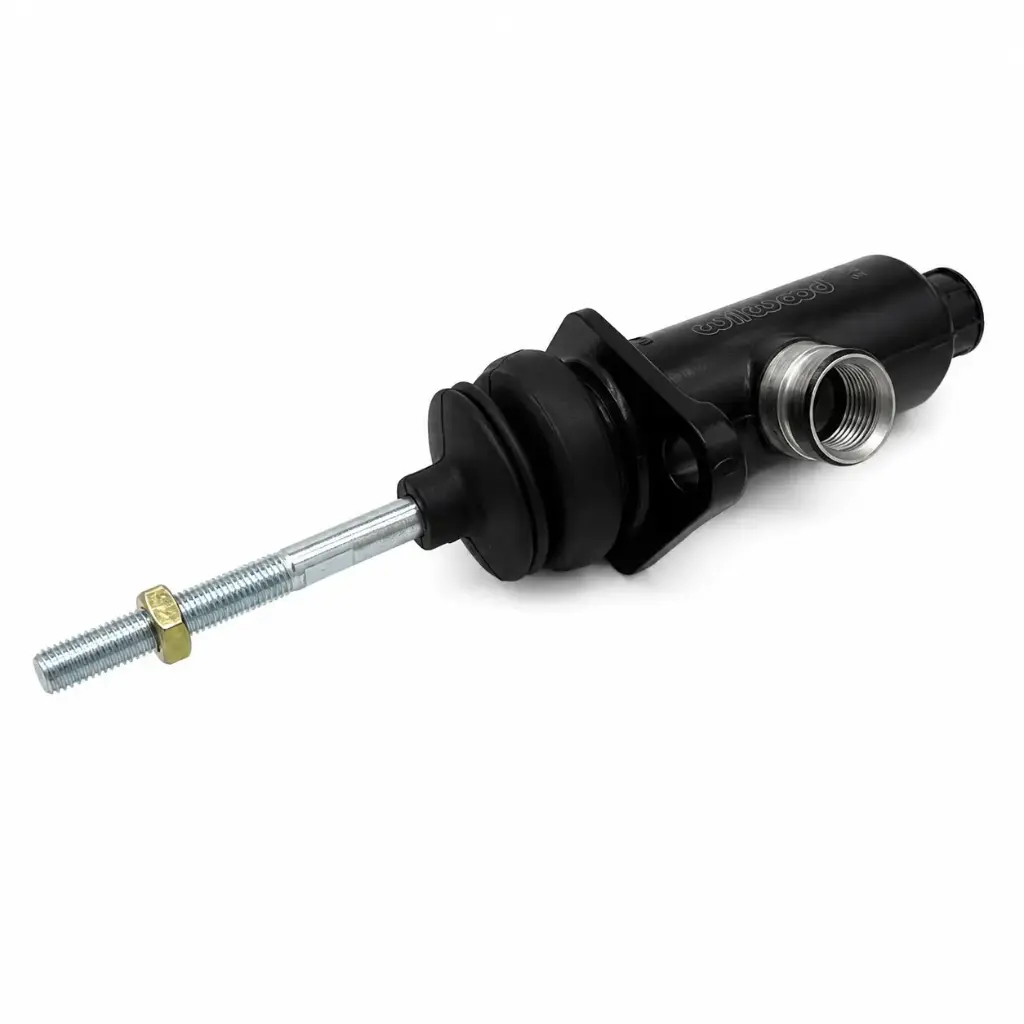

Wilwood Compact Remote Master Cylinder 1-1/8" Bore

The Wilwood compact remote master cylinder provides full-size hydraulic capacity in a short-body design suited to race cars with limited installation space. Its 1-1/8" bore and 1.12" stroke deliver high fluid displacement for compatible motorsport brake or clutch systems.

The flange-mount aluminium body measures approximately 3.37" long and features a single 1/8" NPT outlet positioned near the top of the cylinder bore to help minimise trapped air during bleeding. Its remote-reservoir configuration provides flexibility when packaging the hydraulic system around a pedal box or within a confined race car cabin.

Suitable for competition vehicles, replacement installations and custom motorsport builds. A compatible remote reservoir and connecting hardware are required separately.

Specifications:

• Manufacturer: Wilwood
• Product Type: Compact Remote Master Cylinder
• Bore Diameter: 1-1/8"
• Bore Diameter Metric: 28.6 mm
• Stroke: 1.12"
• Body Length: Approximately 3.37"
• Outlet Configuration: Single
• Outlet Port: 1/8" NPT
• Mounting Style: Flange Mount
• Reservoir Configuration: Remote
• Reservoir Included: No
• Body Material: Aluminium
• Finish: Black E-Coat
• SKU: WW260-10280
