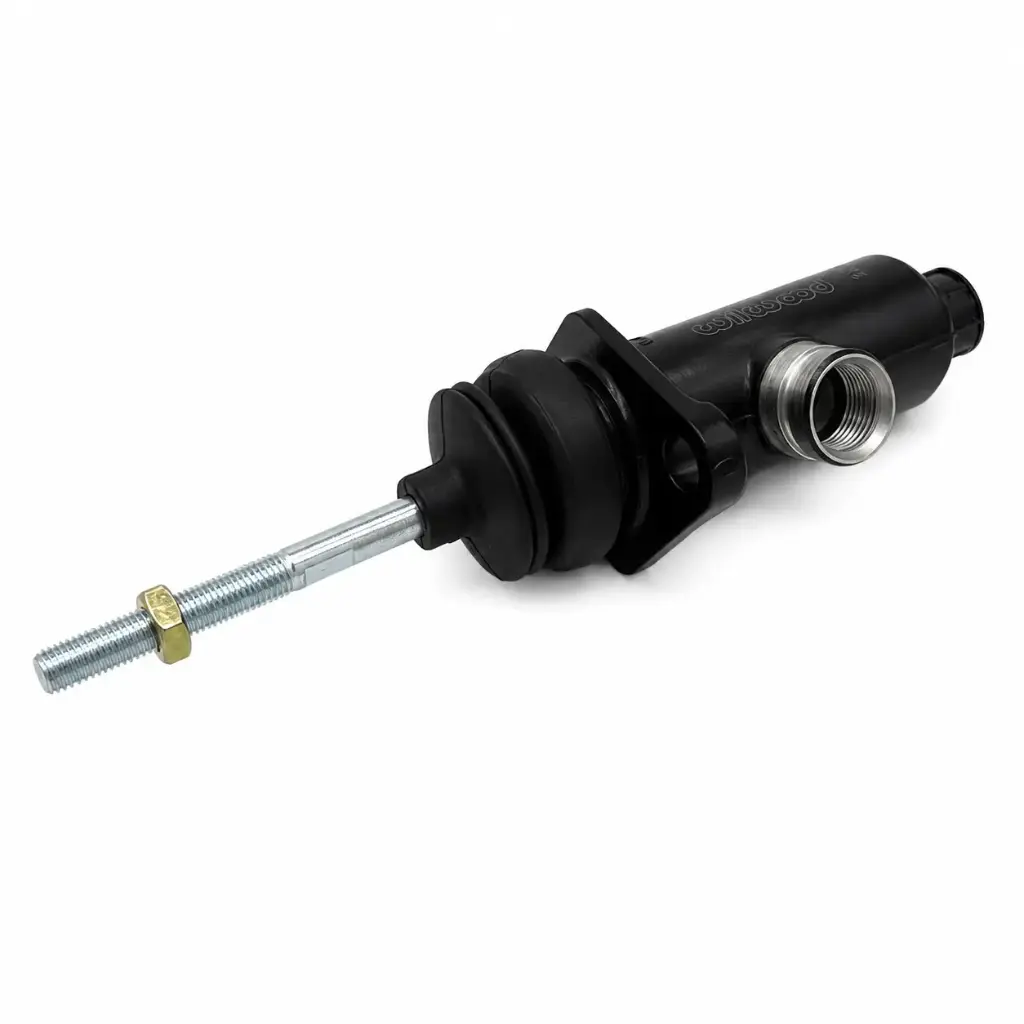

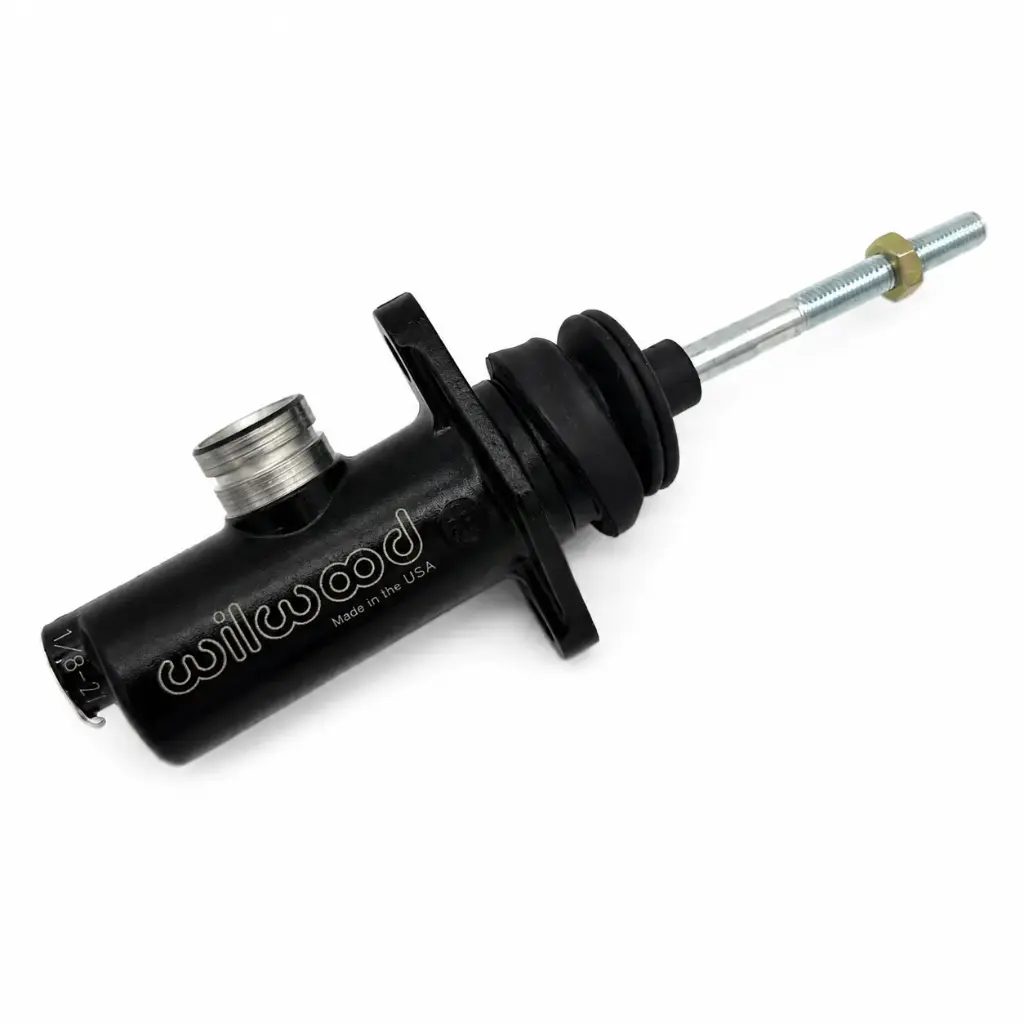

WILWOOD MASTER CYLINDER 1"
Wilwood Compact Remote Master Cylinder 1" Bore
The Wilwood compact remote master cylinder provides full-size hydraulic capacity in a short-body design suited to race cars with limited installation space. Its 1" bore and 1.12" stroke deliver substantial fluid displacement for compatible motorsport brake or clutch systems.
The flange-mount aluminium body measures approximately 3.37" long and features a single 1/8" NPT outlet positioned near the top of the bore to help minimise trapped air during bleeding. Its remote-reservoir configuration provides greater flexibility when packaging the hydraulic system around a pedal box or within a confined cabin.
Suitable for competition vehicles, replacement installations and custom race car builds. A compatible reservoir and connecting hardware are required separately.
Specifications:
- Manufacturer: Wilwood
- Product Type: Compact Remote Master Cylinder
- Bore Diameter: 1"
- Stroke: 1.12"
- Body Length: 3.37"
- Outlet Configuration: Single
- Outlet Port: 1/8" NPT
- Mounting Style: Flange Mount
- Reservoir Configuration: Remote
- Reservoir Included: No
- Body Material: Aluminium
- Finish: Black
- SKU: WW260-10279
| Brand: Wilwood |
| Fitment Location: Underside, Engine Bay |
Internal Reference:
WW260-10279
