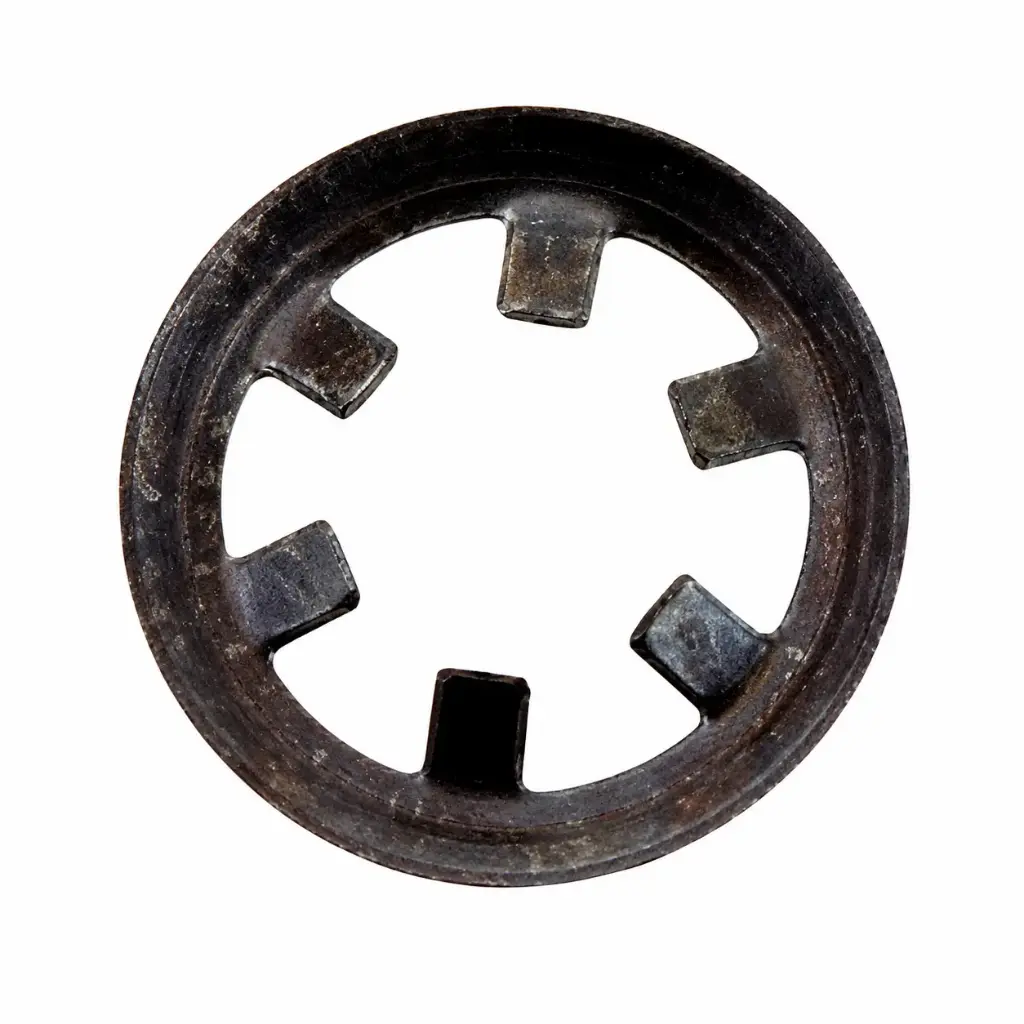

CALIPER PISTON RETAINING SNAP RING STARLOCK WASHER

Wilwood Thermlock Caliper Piston Self-Locking Retaining Washer

This external self-locking retaining washer is designed for compatible Wilwood Thermlock caliper pistons. It installs over the 240-7628 three-wave washer, securing the internal piston components while maintaining the required spring tension within the assembly.

The six inward-facing teeth grip the piston’s retaining post to provide a secure, push-on fit without a conventional circlip groove. Its steel construction is suited to the heat and repeated loading experienced within competition brake calipers.

Ideal for replacing a removed, distorted or damaged retaining washer during Thermlock piston servicing. As this is a self-locking component, replacement is recommended rather than reusing a washer that has already been removed.

Specifications:

• Brand: Wilwood
• Product Type: External self-locking retaining washer
• Application: Compatible Wilwood Thermlock caliper pistons
• Design: Six-tooth push-on washer
• Material: Steel
• Inside Diameter: 0.250"
• Outside Diameter: Approximately 0.52"
• Installation Position: Over three-wave washer 240-7628
• Quantity: One
• SKU: WW230-7629
