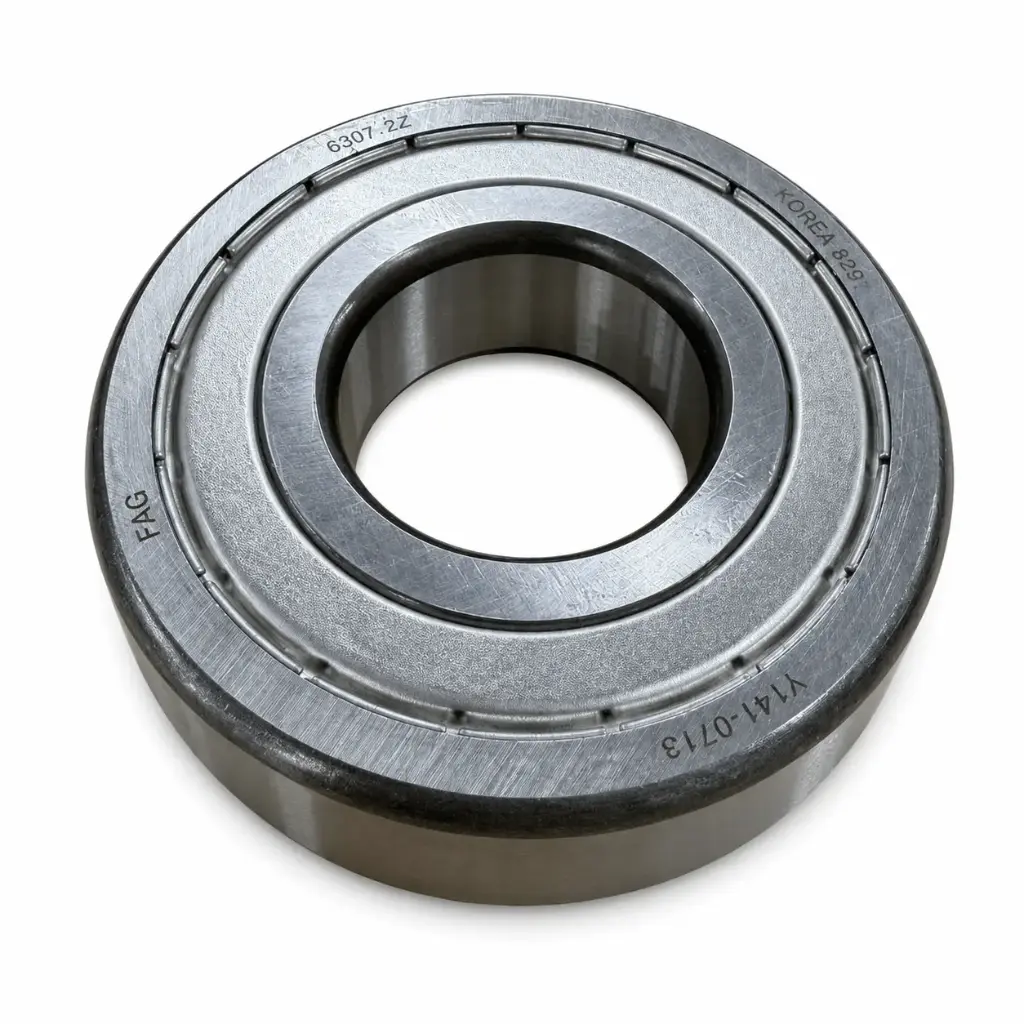

TIGER BEARING 6307-C-2Z

Tiger Deep Groove Ball Bearing 6307-C-2Z

This FAG 6307-C-2Z deep groove ball bearing is used within the compatible Tiger driveline assembly. Its single-row construction supports radial loads together with moderate axial loads in both directions, making it suitable for rotating transmission and driveline components.

Metal shields are fitted on both sides to help retain lubricant and protect the internal raceways from debris. The 35 mm bore, 80 mm outside diameter and 21 mm width provide direct replacement dimensions for the specified installation.

During replacement, inspect the shaft and housing for wear or damage. The bearing should be installed using appropriate tools, applying force only through the ring receiving the interference fit.

Specifications:

• Manufacturer: FAG
• Application: Tiger driveline assembly
• Bearing Type: Single-row deep groove ball bearing
• Bearing Designation: 6307-C-2Z
• Bore Diameter: 35 mm
• Outside Diameter: 80 mm
• Width: 21 mm
• Closure Type: Metal shields on both sides
• Cage Material: Steel
• Quantity: One
• SKU: TG2504
