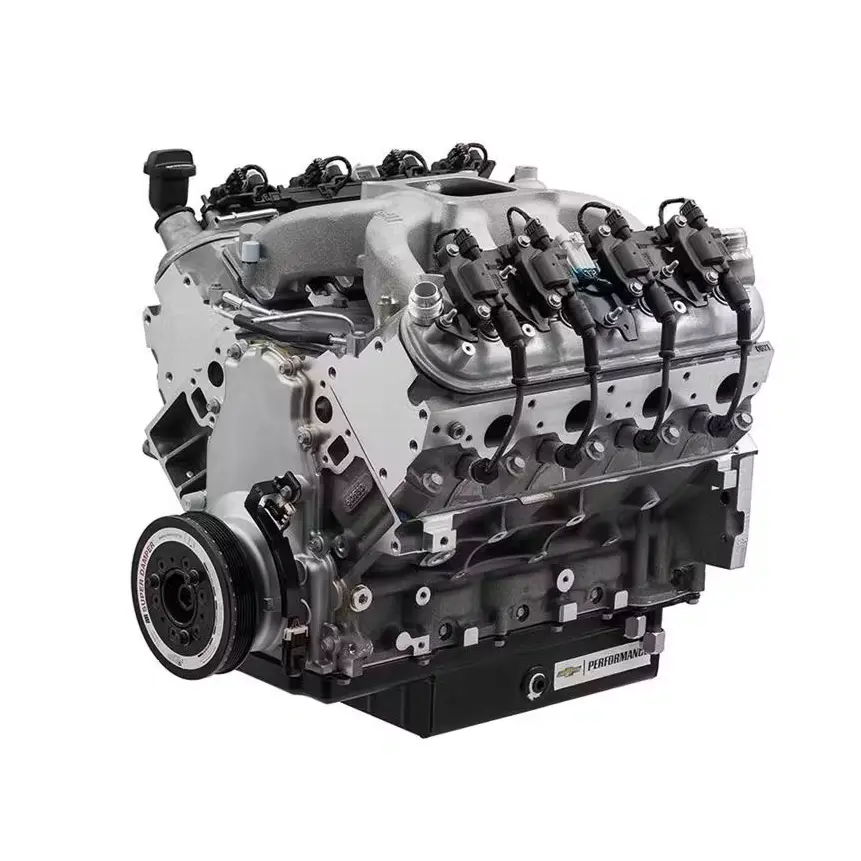

CT525 LS3 RACE ENGINE

Chevrolet Performance CT525 6.2L LS3-Based Race Engine

The Chevrolet Performance CT525 is a competition-focused 6.2-litre V8 developed for high-RPM circle-track racing. Based on the LS3 engine architecture, it uses a six-bolt cross-bolted aluminium block, forged aluminium pistons and a high-lift hydraulic roller camshaft to produce 533 hp at 6,600 rpm and 477 lb-ft of torque at 5,200 rpm.

A single-plane aluminium intake manifold supports carburetted operation, while the six-quart circle-track oil pan is designed to clear most GM rear-steer chassis. The engine is supplied with coil-near-plug ignition, an SFI-certified harmonic balancer and a flexplate.

The carburettor, ignition controller, starter, fuel system, exhaust system and front accessory drive must be purchased separately.

Specifications:

• Engine Type: Gen IV Chevrolet Small-Block V8
• Engine Architecture: LS3-Based
• Displacement: 376 cu in / 6.2 litres
• Fuel System: Carburetted
• Maximum Output: 533 hp at 6,600 rpm
• Maximum Torque: 477 lb-ft at 5,200 rpm
• Block: Cast Aluminium with Six-Bolt Cross-Bolted Main Caps
• Crankshaft: Nodular Iron
• Connecting Rods: Powdered Metal with ARP Bolts
• Pistons: Forged Aluminium
• Cylinder Heads: LS3 Rectangular-Port Aluminium, 68 cc Chambers
• Intake Manifold: Single-Plane Aluminium
• Camshaft: Hydraulic Roller
• Valve Lift: 0.525" Intake / 0.525" Exhaust
• Camshaft Duration at 0.050": 226° Intake / 236° Exhaust
• Valve Size: 2.165" Intake / 1.590" Exhaust
• Bore × Stroke: 4.065" × 3.620" / 103.25 × 92 mm
• Compression Ratio: 10.7:1
• Rocker Arms: Investment-Cast Roller Trunnion
• Rocker Arm Ratio: 1.7:1
• Maximum Recommended Engine Speed: 6,700 rpm
• Reluctor Wheel: 58X
• Engine Balance: Internal
• Recommended Fuel: Premium Pump Fuel
• Oil Pan: Six-Quart Circle-Track Configuration
• Harmonic Balancer: SFI-Certified
• SKU: GM-19434598

Important Installation Notes:

• Requires LS/LSX ignition controller GM-19355863
• Requires a carburettor, starter and fuel system
• Requires an exhaust system and front accessory drive
• Water pump and factory exhaust manifolds are not included
• Designed for dedicated racing use and not intended for street use
• Includes anti-tampering seals
