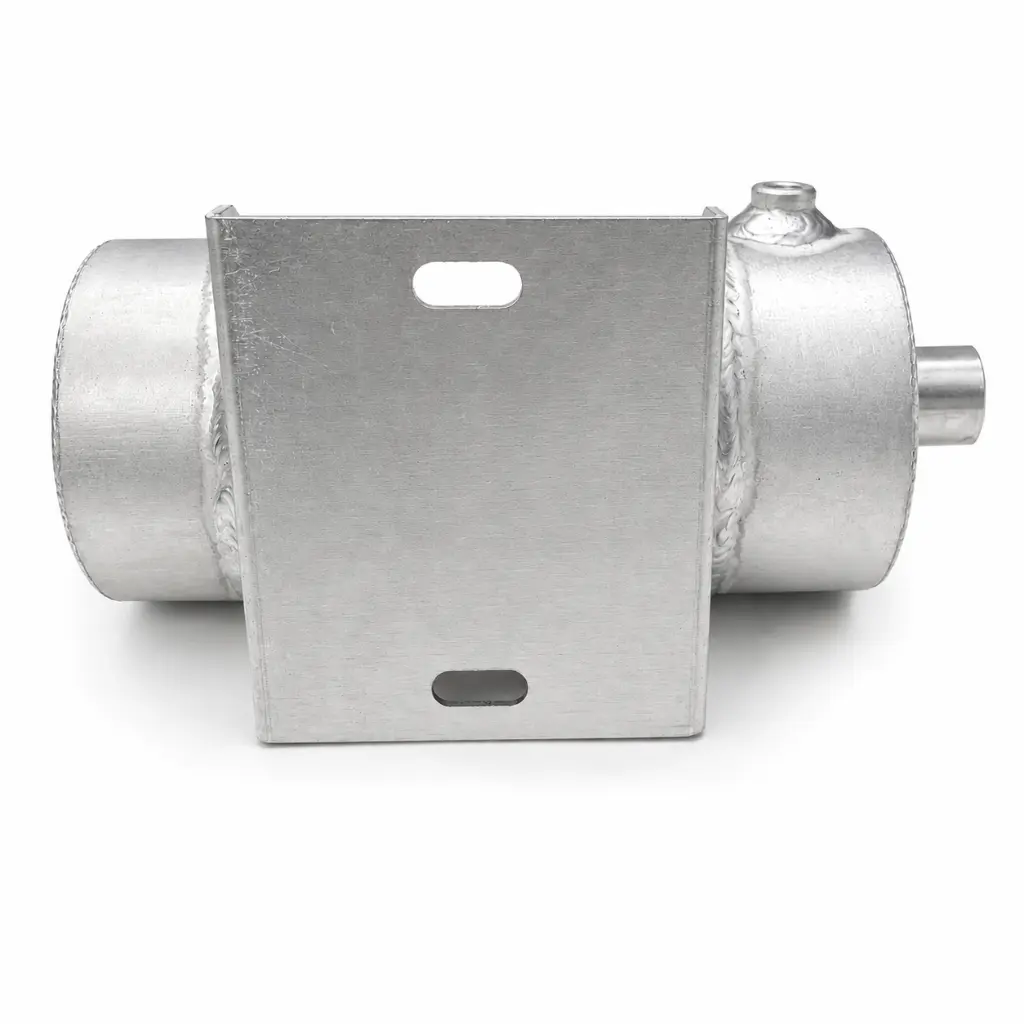

OVERFLOW TANK VERTICAL STD STRAIGHT BRACKET

Overflow Tank Vertical Aluminium – Straight Bracket

This vertical overflow tank is built from 6061 aluminium for durability and resistance to corrosion. Designed for universal fitment, it mounts securely to any vertical surface using a 4.5" x 3.625" straight bracket. With a 2-quart capacity, it provides reliable coolant expansion management in demanding racing conditions. A filtered vent at the top ensures clean airflow, while the bottom drain makes servicing straightforward. The tank features a 1/4 NPT overflow inlet and 1/8 NPT fitting provision for flexibility in plumbing.

Ideal for race cars, performance street applications, and custom builds where a compact, tough overflow solution is required.

Key Specifications:

• Material: 6061 aluminium

• Capacity: 2 quarts

• Dimensions: 10" tall x 3.5" diameter (body approx. 8.25")

• Mounting: 4.5" x 3.625" straight bracket

• Connections: 1/4 NPT overflow inlet, 1/8 NPT vent, bottom drain fitting

• Finish: Raw aluminium
