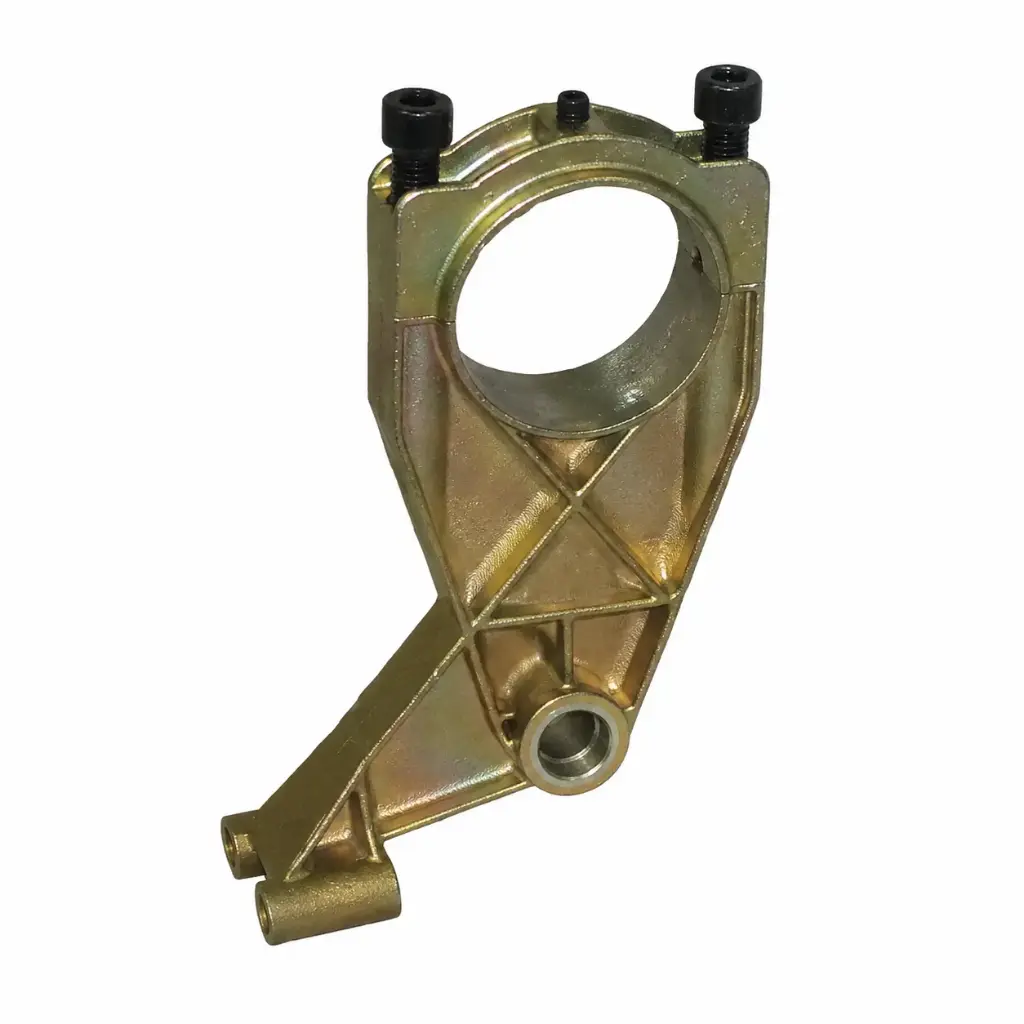

TRAILING ARM ASSEMBLY

This trailing arm and shock mount assembly is built for strength and adjustability in demanding race applications. Designed to weld directly to 3" axle tubes, the cast steel construction provides around 50% more clamping force compared to aluminium brackets. The assembly includes dual shock/spring mounting positions spaced 1.5" apart, making roll rate and stance adjustments quick and straightforward.

The T-arm holes are threaded 3/4"-10, and the shock mounts are threaded 1/2"-13, ensuring a secure fit with common race hardware. This makes it a durable and adaptable option for TA2, Trans Am, and other road race categories where consistent rear suspension geometry is critical.

Specifications:

• Weldable cast steel bracket for 3" axle tubes

• 50% stronger clamping force than aluminium

• Dual mounts 1.5" apart for quick roll rate adjustment

• T-arm holes threaded 3/4"-10

• Shock mounts threaded 1/2"-13

• SKU: 31994
