REAR SHOCK AND CALIPER MOUNT CAP

Rear Axle Trailing Arm Mount Cap Left / Right

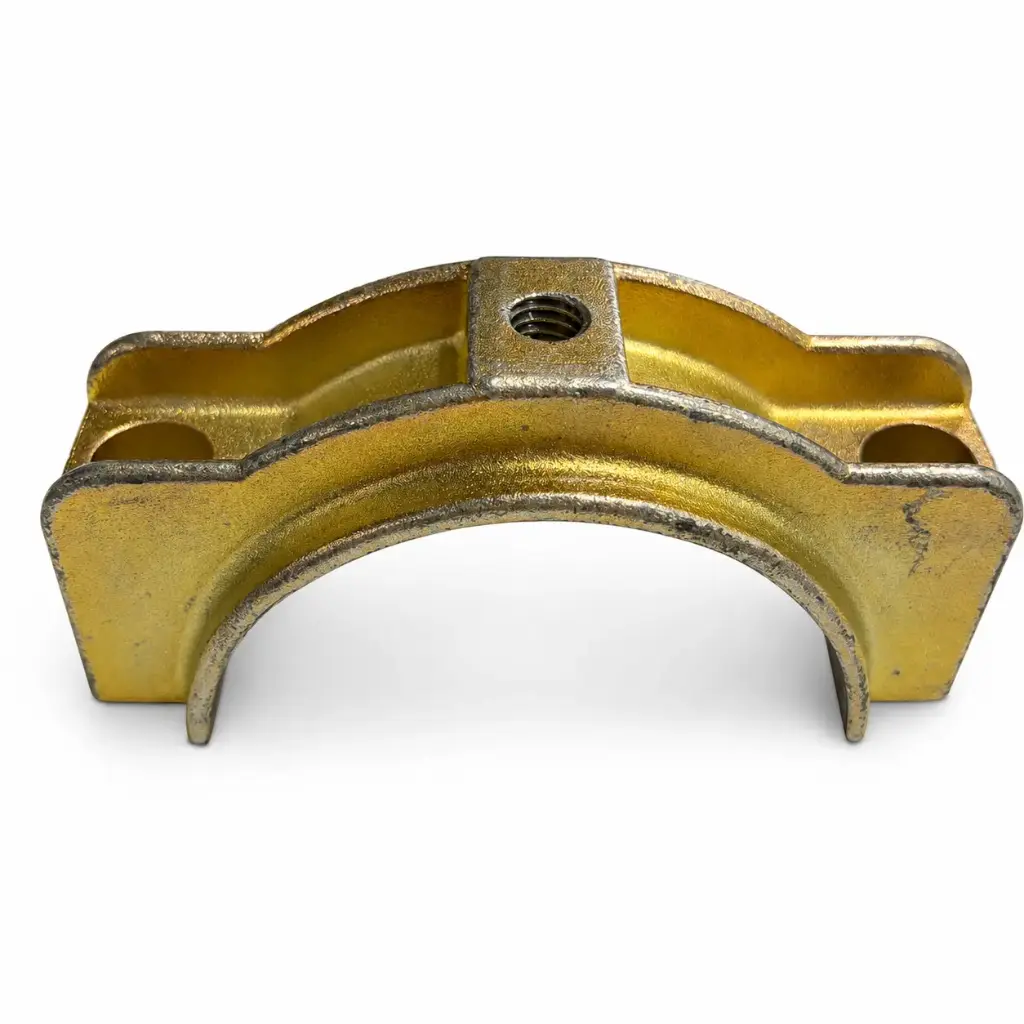

This replacement mounting cap forms part of the clamp-on trailing arm mount fitted around the rear axle tube. It secures the mount assembly to the axle, providing a solid attachment point for the rear trailing arm and related suspension hardware.

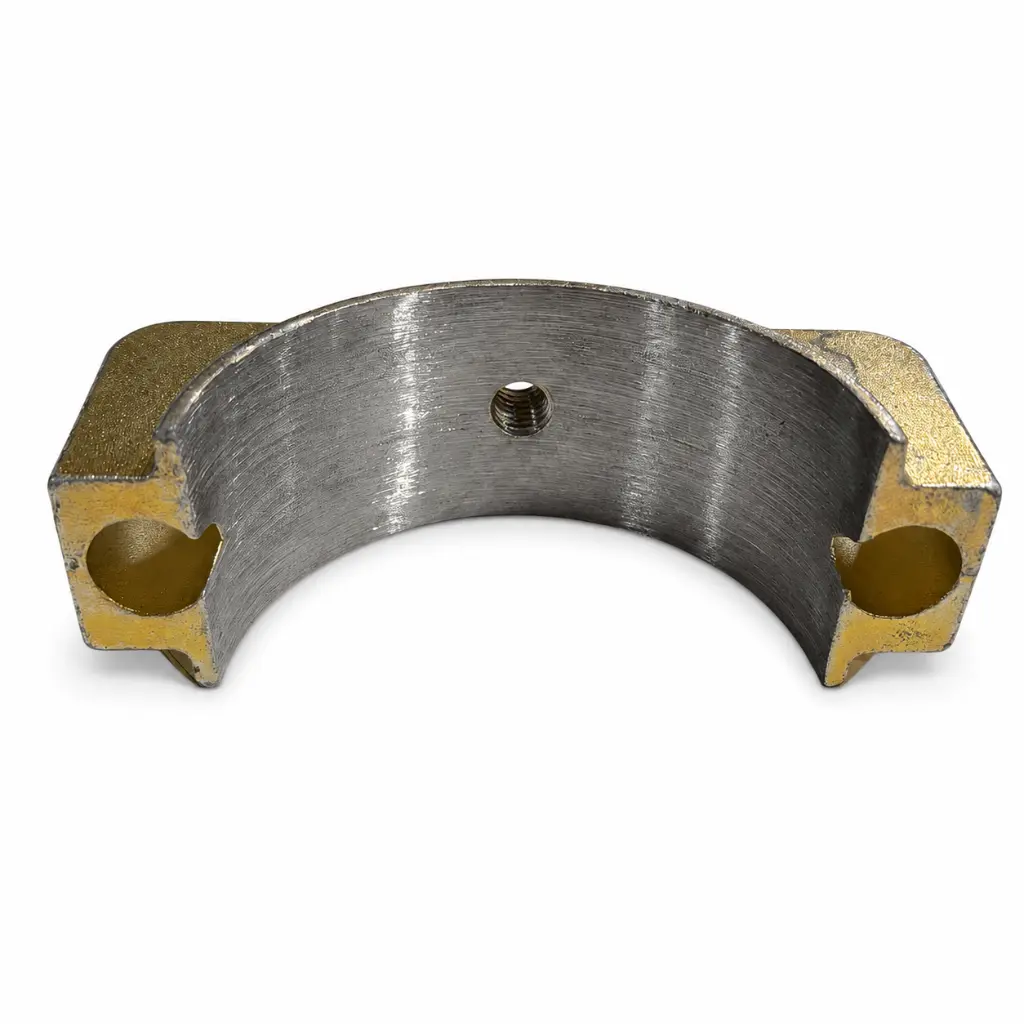

Manufactured from steel with a corrosion-resistant plated finish, the cap features a formed internal radius to match the axle tube and two mounting holes for clamping hardware. A central threaded hole provides an additional fastening point within the complete mount assembly.

The same cap is used on both the left and right sides of the car, with one required per side. It is suitable for repairing or servicing the Howe 31991-style trailing arm and shock mounting assembly.

Specifications:

• Position: Rear axle
• Application: Trailing arm mounting
• Side: Left or right
• Axle Tube Compatibility: 3" outside diameter
• Material: Steel
• Finish: Plated
• Quantity Required per Car: Two
• Sold: Individually
• SKU: 319910
