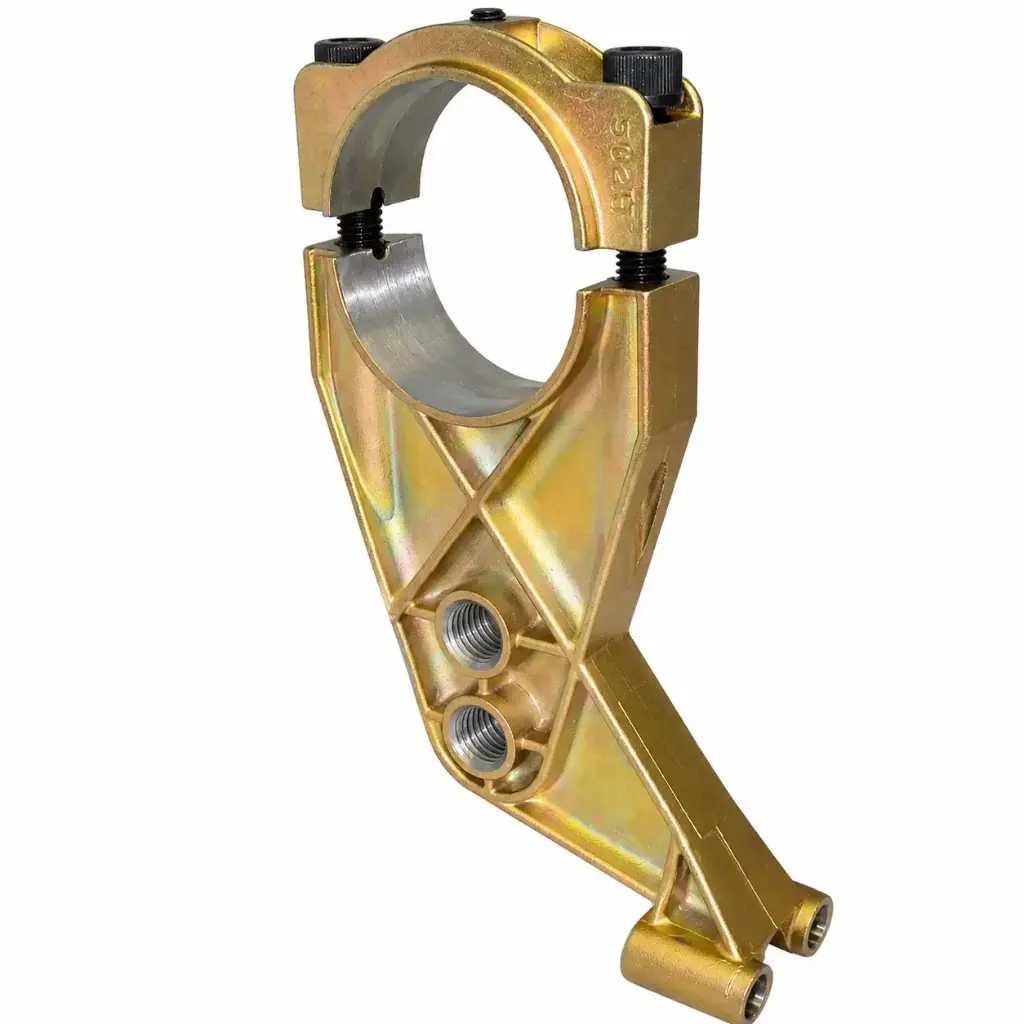

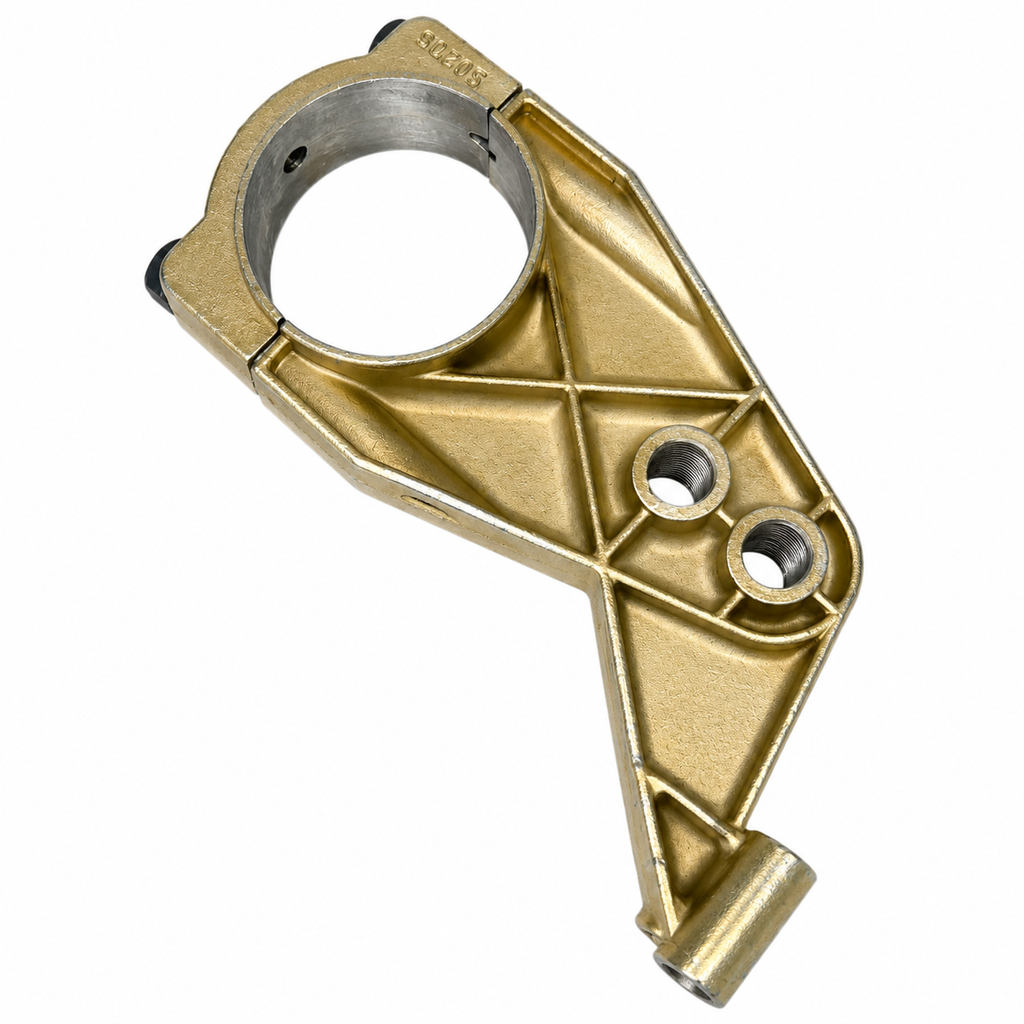

REAR T-ARM & SHOCK MOUNT

T-Arm & Shock Mount Cast Steel 3" Axle Tube

This heavy-duty weld-on cast steel T-arm and shock mount is designed for 1991 and later chassis. Built stronger than aluminium, the cast steel body provides around 50% greater clamping force for secure, reliable mounting under high load conditions. The bracket features two mounting holes spaced 1.5 inches apart, making it easy to adjust spring stance and fine-tune roll rate.

It is threaded to accept 3/4-10 T-arm bolts and 1/2-13 shock mounts, ensuring compatibility with common race hardware. Suits 3-inch axle tubes, making it a robust choice for TA2, Trans Am, and other high-performance racing applications where durability and adjustability are critical.

Specifications:

• Material: Cast steel, weldable

• Axle tube fitment: 3"

• T-arm holes: 3/4-10 thread

• Shock mount holes: 1/2-13 thread

• Dual mount spacing: 1.5"

• SKU: 31991
